Magnetic science: developing a new surfactant Understand article

With the use of detergents and other surfactants on the rise, the resulting pollution is worrying. One answer: surfactants that can be collected and re-used simply by switching a magnetic field on and off.

Image courtesy of
Roadsidepictures;
image source: Flickr
Automatic car washes use a
lot of detergent.

Image courtesy of swisscan;
image source: Flickr

It has been estimated that each person in the EU uses about 10 kg of detergents annually. This includes not only the bars of soap, shampoos, toothpastes, washing powders and household cleaning agents we are familiar with, but also detergent-type compounds found in fuels, pharmaceuticals and even foods and beer. In industry, huge quantities of detergents are used, for example in commercial laundries, in preparing cloth and leather for dyeing, in car washes and for cleaning and sanitising hospitals.

Once they have performed their cleaning task, the residues are simply washed away into the sewers and eventually released into the environment. Imagine that instead these residues could be recovered. This article describes some of the latest research into recyclable detergents, and how they can be studied using advanced research methods.

Soaps, detergents and surfactants

Figure 1: Sodium
dodecanoate,
C11H23COONa+, showing
the long hydrophobic
hydrocarbon tail and the
hydrophilic carboxylate head
structure. Click on image to
enlarge.

Image courtesy of the
University of Bristol
Figure 2: A micelle is the basic
structure needed for detergents
to clean greasy stains: the
grease can be incorporated into
the oily central core (A) of the
micelle. The hydrophobic tails
(B) interact with the oil and
grease (A), while the
hydrophilic heads (C) hydrogen
bond with the aqueous solution
(D).

Image courtesy of Mariana Ruiz
Villarreal; image source:
Wikimedia Commons

Surfactants are compounds that lower the surface tension of a liquid, making them suitable for a number of applications – such as emulsifiers, foaming agents, wetting agents and dispersants, for example. Surfactants or mixtures of surfactants that are used in cleaning are known as detergents. The simplest and oldest of all detergents is soap, used in Babylon almost 5000 years ago; in fact, soap manufacture is one of the oldest chemical industries.

Sodium dodecanoate (figure 1) demonstrates the general structure for all surfactants: one part of the molecule is hydrophilic, meaning it will be soluble in water as it has a charged ‘head’, and the rest of the molecule is an oily hydrophobic ‘tail’. The ability of a detergent to dissolve in water is due to a balance of intermolecular forces. The head is a negatively charged carboxylate ion able to form hydrogen bonds with water, whereas the hydrophobic tail cannot hydrogen bond because it is a long alkane chain, with no electronegative elements present. This explains why surfactants aggregate in clusters, known as micelles (figure 2), which are essential for the action of detergent cleaners.

The earliest detergent: soap
Image courtesy of schoeband;
image source: Flickr

The two ends of the detergent also behave differently with non-polar stains such as grease. The hydrophobic tails interact with the grease, while the hydrophilic heads attract water molecules through hydrogen bonding. After a little agitation, the grease leaves the material to which it was attached, forming detergent droplets containing grease; the droplet surfaces consist of the water-soluble hydrophilic heads. The grease is therefore removed from the material and held in the water by these micelles (figure 2).

Developing magnetic surfactants

A research group at the University of Bristol, UK – including two of the current authors – is currently working on a new type of surfactant: magnetic surfactants, which respond to a magnetic field as a result of iron atoms in their head groups (figures 3 and 4). These surfactants could have both environmental and medical applications.

Figure 3: Developing a
magnetic surfactant from a
conventional surfactant.
A) The structure of
dodecyltrimethylammonium
bromide, a non-magnetic
surfactant that the Bristol
group took as one of the
starting materials. Click on
image to enlarge.

How were the magnetic surfactants developed? And how do you prove that you really have produced a magnetic surfactant?

To begin with, the Bristol researchers took a known surfactant and replaced its bromine group with an iron-containing group (figure 3). They then demonstrated that the compound still functioned as a surfactant: it was capable of lowering the surface tension of liquids, and could cause them to foam. Next, the group demonstrated that the iron in the head group had conferred the desired magnetic activity.

To really understand what was happening, however, the researchers needed to look more closely at their compound. For example, although its ability to lower surface tension strongly indicated that it was forming micelles, it was not conclusive proof. To test this, the researchers used a super-sensitive specialist technique called small-angle neutron scattering (SANS).

B) The structure of
dodecyltrimethylammonium
trichlorobromoferrate, one
of the magnetic surfactants
that the Bristol group is
working on. Click on image
to enlarge.
Figure 4: The effects of a magnet on solutions of normal (left, with added dye to show the two layers) and magnetic (right) surfactants. The presence of iron in the magnetic surfactant explains the attraction seen on the right.
Image courtesy of the University of Bristol

Surfactants can be imaged using small-angle neutron scattering

SANS is an excellent technique for investigating structures about 0.1-100 nm in size; perfect, then, for searching and characterising surfactant micelles and emulsion droplets, which are typically 2-10 nm in diameter. SANS is also widely used to investigate soft matter (e.g. polymers, colloids and liquid crystals), biological molecules (e.g. DNA and proteins in solution) and hard condensed matter (e.g. clusters in alloys, and flux line lattices in supra-conductors).

In a SANS experiment, an intense neutron beam is directed onto the sample of interest (figure 5); this beam can be viewed as a stream of free particles travelling in the same direction and with the same speed. The free neutrons in the beam interact with the bound nuclei of the atoms in the sample, scattering the beam. These scattered neutrons are recorded by a position-sensitive detector. The resulting data – the intensity of the neutrons scattered by different areas of the sample – is used in mathematical models to determine the shape, size and charge of the scattering objects in the sample. For a more detailed explanation of SANS analysis, download the supporting materials from the Science in School websitew1.

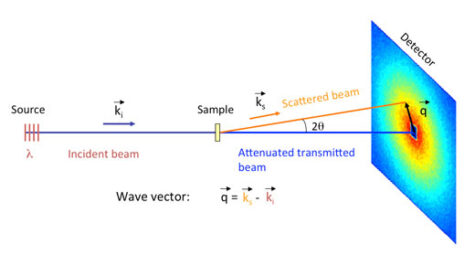

Figure 5: Schematic representation of a small-angle neutron scattering experiment. The incident ki and scattered
ks wave vectors are shown, along with the resultant scattering vector q, which is in the plane of the detector.

Image courtesy of ILL

For their SANS analysis, the Bristol group teamed up with scientists at the Institut Laue-Langevin (ILL; see box) in Grenoble, France. Although other surfactant properties such as surface tension reduction had already been observed with the new compound, the SANS results provided the first conclusive proof that it really was forming micelles.

Furthermore, the scientists were able to show that the micelles formed by the new surfactant were small, spherical and uncharged. This was important, because the behaviour of a surfactant, and thus its applications, are affected by characteristics of the micelles and emulsion droplets that it forms with different liquids. With this information, the scientists are now better able to predict – and in future investigate – the behaviour of their surfactant under different conditions.

Using SANS, the team was also able to test whether in solution, the iron particles dissociated from the surfactant, effectively resulting in a mixture of non-magnetic surfactants and dissolved magnetic particles, or whether the two elements remain bound, forming genuinely magnetic micelles. The results suggested that the iron compounds were firmly integrated in the micelles. This opened up the possibility of creating magnetic emulsions with potential medical applications (see below).

Magnetic surfactants have environmental and medical applications

The Deepwater horizon oil
spill in the Gulf of Mexico, as
seen from space in 2010. The
spill was the largest in the
history of the petroleum
industry. Detergents were
used to try to disperse the oil.

Image courtesy of NASA

Magnetic surfactants may sound like a strange idea, but they have some very practical applications. For example, many surfactants are not biodegradable. If magnetic surfactants were used instead, they could be retrieved from waste-water using a magnetic field and recycled, resulting in lower levels of detergents entering the environment.

Figure 6: The effect of a
magnetic field on a magnetic
emulsion: the magnet drags
the droplet uphill, against
gravity. Once the magnet is
removed (picture 5) gravity
causes the droplet to flow
back down the tube.
Click on image to enlarge.

Image previously published in
Brown et al. (2012a).
Reproduced by permission of
The Royal Society of Chemistry.

Moreover, currently when there is an oil spill at sea, surfactants are used to break oil slicks into emulsion droplets so small that they diffuse away into the ocean, where the oil remains a pollution hazard. If magnetic surfactants were used instead, the resulting emulsions could be collected, removing both the oil and the surfactants from the water.

Magnetic surfactants may even have medical applications. Targeted drug delivery aims to get medication only to the specific cells where it is required, preventing the waste of valuable pharmaceutical compounds and minimising side effects. Figure 6 shows how emulsion droplets (dyed blue) formed from the magnetic surfactants can be manipulated with a small magnet efficiently enough to overcome typical blood flow in the body. These emulsions could encase medication in the same way as emulsions currently used in drug delivery, but the magnetic emulsions could be directed to the right spot in the body with a magnet.

Image courtesy of Gustavo
(lu7frb); image source: Flickr

Future prospects

Magnetic surfactants are not the only new type of surfactants that are currently being developed in Bristol. The research team are also investigating surfactants that can be turned on and off by changes to light, pH, temperature, pressure and carbon dioxide concentration. The current challenge is to learn how to scale up the synthesis of these surfactants to make these smart surfactants cheaply and effectively.



More about ILL

SANS experiments require intense beams of neutrons, which can only be produced at large facilities. In Europe these are done at laboratories jointly funded and run through inter-governmental collaborations, such as ISISw2, in the UK, and the Institut Laue-Langevin (ILL)w3, in France.

ILL is an international research centre operating the most intense steady neutron source in the world. Every year, more than 800 experiments are performed by about 2000 scientists coming from all over the world. Research focuses on science in a variety of fields: condensed matter physics, chemistry, biology, nuclear physics and materials science.

ILL is a member of EIROforumw4, the publisher of Science in School.



Download

Download this article as a PDF

References

Web References

Resources

Institution

ILL

Author(s)

Julian Eastoe is a professor of chemistry, specialising in surfactant chemistry at the University of Bristol, UK. Paul Brown is a PhD student, investigating novel surfactants at the University of Bristol, UK. Isabelle Grillo is an instrument scientist at the Institut Laue-Langevin in Grenoble, France.

Julian Eastoe and Paul Brown came up with the idea of magnetic surfactants and carried out the laboratory experiments (with the help of Professor Annette Schmidt from the University of Cologne, Germany). Isabelle Grillo was heavily involved with the neutron scattering and data analysis.

Tim Harrison also works at the University of Bristol, as the school teacher fellow at the School of Chemistry. This is a position for a secondary-school teacher that was created to bridge the gap between secondary schools and universities, and to use the resources of the School of Chemistry to promote chemistry regionally, nationally and internationally. Tim is a frequent author for Science in School.
