The latex motor Teach article

Can you imagine building a motor from latex gloves? Physics teachers Ludwig Eidenberger and Harald Gollner, and their students Florian Altendorfer and Christoph Eidenberger, show how, exploiting the reversible thermodynamic processes of thin layers of latex.

How the project began

In 2006, we took part in the Experimentale 2007w1 in Wels, Austria, a biennial regional science exhibition for schools. The inspiration for our project came from a simple effect described in the chapter on thermodynamics of the popular physics book Feynman Lecturesw2: a stretched rubber band contracts when heated. This is unusual, since most materials expand when heated, rather than contract.

Winners of the audience award
at Science on Stage in Berlin, 2008:
Harald Gollner, Christoph
Eidenberger, Ludwig Eidenberger,
Florian Altendorfer (from left to right)

Image courtesy of Science on
Stage Germany

We concentrated on how best to visualise this effect, and developed an elevator and a motor, as well as two types of refrigerator – all driven by the expansion and contraction of latex, a type of rubber. The advantages of latex over other types of rubber are its high quality, lack of additives, the thin layers in which it is available – plus the added fun factor of using coloured condoms.

This interdisciplinary project was a valuable experience for everyone involved: we collaborated with art and technology teachers on the experimental design; the students translated texts, designed posters and a websitew3, and practised their presentation and communication skills, not only in German, but also in English and Spanish.

They carried on working on the project for over a year after leaving school in 2007, and the whole team are still running teacher workshops on the project, such as in Technorama, The Swiss Science Centerw4 in Zürich (2009), and in Berlin, Germany (2010)w5.

The principle

Latex is a polymer consisting of long, chain-like molecules of repeating isoprene units (C5H8). In its relaxed state, the chains are interlinked at a few points. Between a pair of links, each monomer can rotate freely about its neighbour, and at room temperature, latex stores enough kinetic energy for them to do so. When latex is stretched, though, the monomers are no longer able to oscillate, and their kinetic energy is given off as excess heat. When the expanded latex is heated, the process is reversed: the latex absorbs the heat, the molecular motion increases, and the latex contracts.

Experiment 1: the elevator

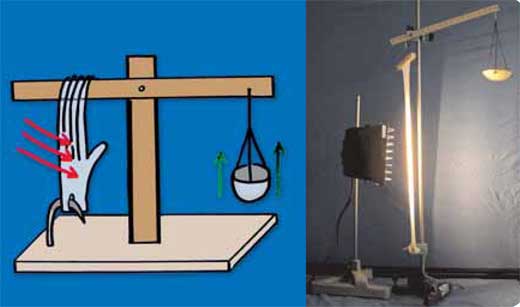

The elevator experiment.
Click to enlarge image

Image courtesy of the
latex motor team

This is a simple experiment, suitable for students aged 11 and above, to introduce the thermodynamics of latex, as it shows the conversion of energy. A latex glove emits heat when expanded and absorbs heat when it contracts again.

Kinetic energy -> thermal energy

As this effect is reversible, a stretched latex glove contracts when heated by a spotlight. We can use this to build an elevator.

Thermal energy -> kinetic energy

The difference between the effect that stretched latex contracts when heated and heat expansion should be mentioned.

The elevator can be built by students with little effort and basic materials (such as a Lego® construction set). In the teacher workshop we ran in Zürich, participants built very diverse elevators with great success entirely without instructions. Instructions that are too detailed will constrain the students’ creativity – try formulating the aim instead: the effect that the stretched latex band will contract when heated should be visualised. Mechanisms to enhance the visibility of this effect could be a lever, a pulley, etc. Below are some guidelines you might like to use.

Materials

  • Sealing clips
    Image courtesy of Olaf Brust

    A thin latex glove or condom

  • A spotlight (minimum 500 W)
  • A clamp stand with two clamps
  • A wingnut clamp or sealing clip
  • A plastic / metal / wooden balance arm with holes spaced at regular intervals
  • A nail or similar object as a pivot (if possible with a ball bearing)
  • Two hooks
  • A hanging scale pan and weights

Procedure

  1. Fix the two clamps at a distance of about 40 cm along the stand (depending on the latex band you use – it needs to be stretched).
  2. Fix the balance arm flexibly to the upper clamp, using the nail as a pivot point. One arm should be much shorter than the other: the shortening you will observe in the latex band when applying the spotlight is minimal, and it’s easier to see if the lever is longer.
  3. Attach the latex glove to the bottom clamp (using its fingers).
  4. A ball bearing
    Image courtesy of Yannick Patois;
    image source: Wikimedia Commons

    Attach the hand end of the glove to the wingnut clamp / sealing clip.

  5. Attach the wingnut clamp / sealing clip with the glove to the short end of the bar using a hook. Be careful not to damage the latex. The glove should be stretched to about ¾ of its maximum so that it can shorten visibly in the experiment.
  6. Hang the scale pan from the other (long) end of the bar using the second hook.
  7. Use the weights to adjust the balance arm’s position to be horizontal.
  8. Shine the spotlight onto the glove – the weight will be lifted due to the glove’s contraction.

This experiment can be used

  • To explain that Joule is the dimension of both work and heat
  • To show that machines can transform heat into work
  • To introduce reversible processes in physics
  • To calculate the efficiency factor of the elevator.

Experiment 2: the latex motor

This experiment takes advantage of the thermodynamics of rubber to generate power, creating a thermal engine.

Materials

A hula hoop
I
mage courtesy of the latex motor team
  • A hula hoop (diameter about 1 m)
  • 8 thin latex gloves or condoms
  • A spotlight (minimum 500 W)
  • A ball bearing (this will increase the motor’s efficiency)
  • A hub (diameter about 20 cm)
  • An axis (thread rod)
  • A stand
  • 16 sealing clips / wingnut clamps

Procedure

  1. Build a stand that will limit the friction exerted on the axis.

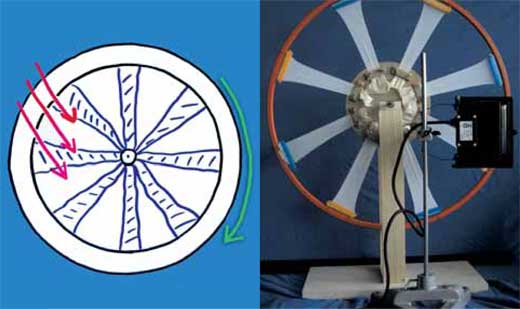

  2. The latex motor.
    Click to enlarge image

    Image courtesy of the latex motor team

    Connect the axis and hub to the stand.

  3. Attach 8 clips / clamps to the hub (e.g. using wire).
  4. Attach 8 clips / clamps at regularly spaced intervals to the hula hoop.
  5. Work in groups to fix the moderately stretched gloves / condoms between the hub and the hula hoop with the sealing clips.
  6. Make sure that the hula hoop is perfectly balanced on the hub – otherwise it won’t work. Adjust the tension of the gloves / condoms; use small weights to balance the system.
  7. Shine the spotlight onto one side of the motor – it will start turning.

The latex spokes contract on the side that is heated, so the centre of mass shifts. Thus the wheel starts turning, and due to the cooling-down of the spokes on the other side, a continuous energy conversion is possible.

Thermal energy -> rotational energy

This experiment can be used

  • To introduce heat engines
  • To show the application of a physical effect in a simple machine.

Experiment 3: refrigerator I

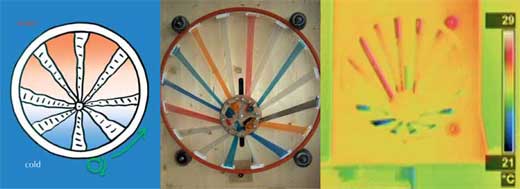

The latex motor as a refrigerator
, type I. The infrared camera shows
the temperature difference in the
latex refrigerator.
Click to enlarge imagea

As an introduction, expand a latex glove and wait for it to emit its heat to the surrounding air. If you now let the glove contract, it will be cold.

Kinetic energy -> heat transmission

The following experiment illustrates that the latex motor is a reversible process. If the hula hoop runs in guide rolls (powered by an electric motor) and the axis is not in the centre, the condom spokes are warm on the expanded side and cool on the other side. The resulting temperature difference can only be visualised using an infrared camera (see images).

Motor: temperature difference -> rotation
Refrigerator: rotation -> temperature difference

Experiment 4: refrigerator II

The following is a variation of the experiment above, and can be used to explain the concept of a refrigerator (a closed circle which absorbs heat on one side and emits heat on the other side).

Materials

  • A clamp stand with two clamps
  • Two wooden rollers covered with rubber (e.g. a small balloon), one of them with a handle
  • A latex glove
  • Scissors
  • An infrared camera (optional)

Procedure

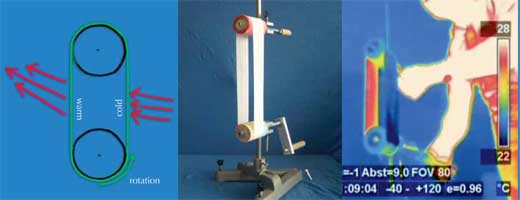

The type II latex refrigerator.
Click to enlarge image

Image courtesy of the latex motor team
  1. Fix the two clamps at a distance of about 20-40 cm along the stand (the latex loop will need to be stretched).
  2. Fix the two rollers in the clamps: both should be motile.
  3. Cut off the finger part of the glove and the rolled up edge at the bottom, if present. A clean cut without frayed edges is important.
  4. Stretch the resulting latex loop over the two rollers.
  5. If you have an infrared camera, you can use it to monitor the temperature in different parts of the machine.
  6. Turn the handle to power one of the rollers. Slow the other one down gently by hand.

Thus, the latex loop is permanently expanded (warm) on one side and permanently relaxed (cold) on the other side. This machine produces a temperature difference of about 10 °C.

Experiment 4: refrigerator II (students’ version)

This is a simplified version of Experiment 3 which can easily be performed in class without a lot of preparation. It is best done in groups of three students.

Materials

  • Two round wooden sticks (diameter 3-5 cm, can be bought in hardware shops)
  • A balloon
  • A glove
  • Scissors

Procedure

  1. Student’s version of the type II
    latex refrigerator

    Image courtesy of the latex motor team

    Cover one wooden stick with the balloon.

  2. Cut a latex loop from a glove as described for Experiment.
  3. Stretch the latex loop over the two sticks.
  4. Each stick should be held horizontally by a student, with one hand at each end (see image).
  5. The stick covered with the balloon should now be rotated around its axis. The second stick is held still or rotated slowly. Friction between the balloon and the latex loop drags one half of the latex loop towards the stick being turned; the other half becomes slack.
  6. A third student should now feel the temperature difference between the upper and the lower halves of the latex loop.

Hints and tips

For higher heat emission, stretch the latex close to its elastic limit.
Very thin layers of latex give the best results. Use thin latex gloves (disposable gloves) or condoms. Replace the materials after some time to ensure good results.
Note: some students may be allergic to latex, so be sure to check.
Let the students invent new machines based on those effects!

Download

Download this article as a PDF

References

Web References

Resources

  • Suggestions on working in the primary-school science classroom with the effect that a rubber band heats up when stretched and cools down when relaxed can be found on the website ‘Science is Fun in the Lab of Shakhashiri’ (http://scifun.chem.wisc.edu) or follow the direct link: http://tinyurl.com/yc2hjtg
  • To learn more about latex and other rubbers, and how to test their characteristics in the classroom, see:Stanley H (2008) Materials science to the rescue: easily removable chewing gum. Science in School 9: 56-61.

Author(s)

Professor Ludwig Eidenberger teaches mathematics and physics at Rohrbach secondary school in Upper Austria. Harald Gollner is a teacher of physics and chemistry at the same school. In 2006, when the latex motor project began, Florian Altendorfer and Christoph Eidenberger were aged 19 and still at school. Today, Florian is studying mechanical engineering at Graz Technical University. For the latex motor project and in his spare time, he designs websites and printed material. Christoph is studying in Linz to become a mathematics and physics teacher in secondary school.
The latex motor project received awards both at the Science on Stage Austria competition in Vienna, in April 2008 (see Hayes, 2008), and the international Science on Stage Festival in Berlin, Germany, in October 2008 (see Furtado, 2009).
